Heavy Duty Dual Purpose Drum Storage Unit for 48 Drums or 12 IBCs with Leak Proof Sump and Steel Construction

Overview

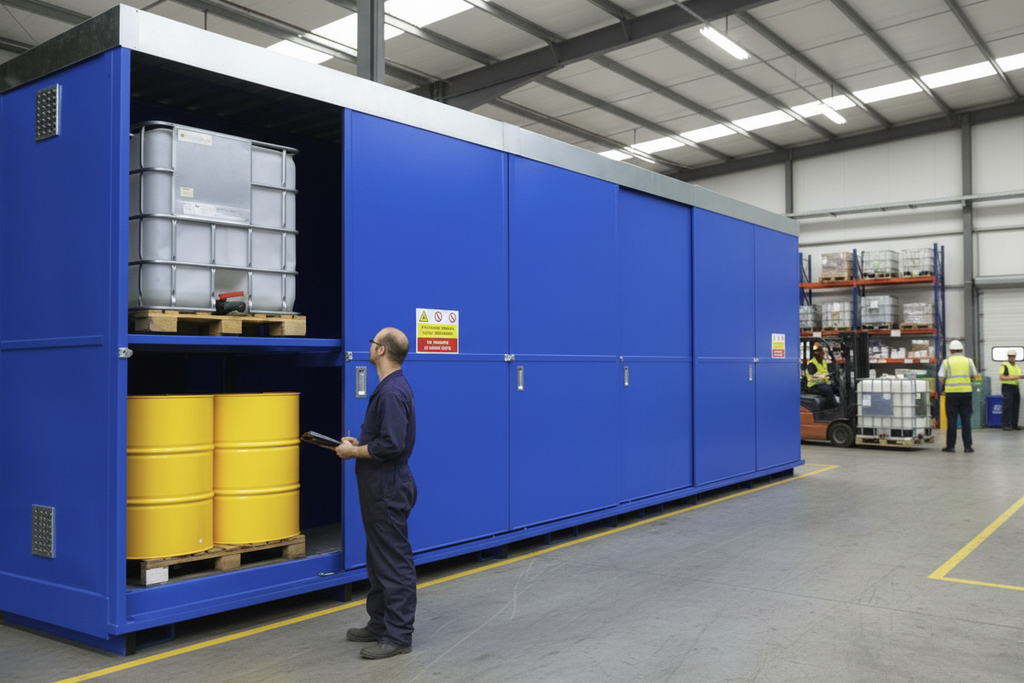

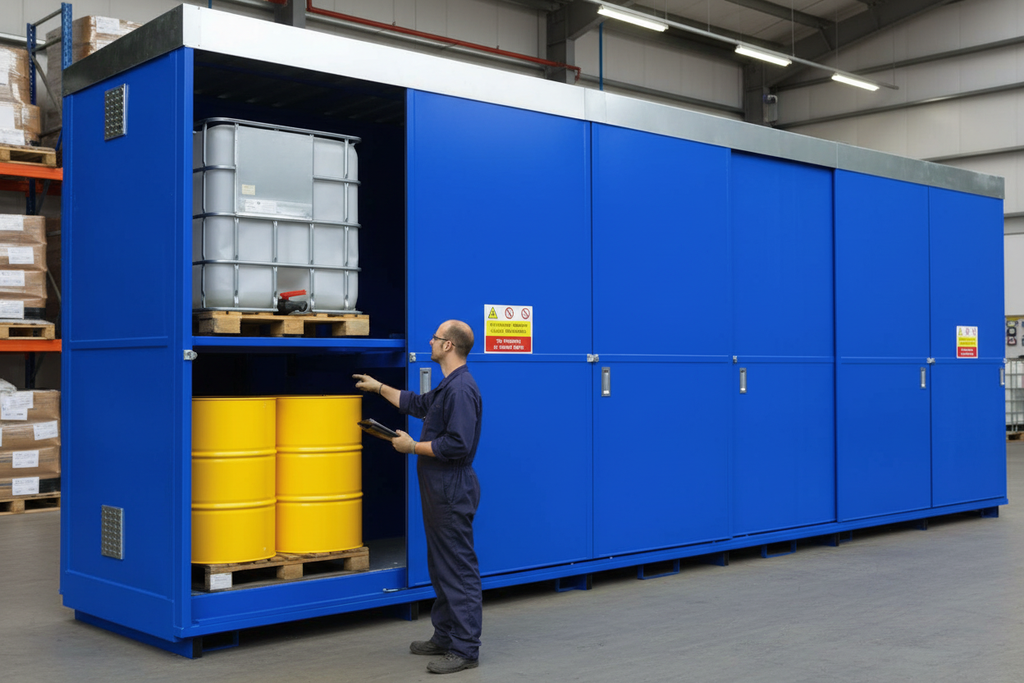

The Heavy Duty Dual Purpose Drum Storage Unit is expertly designed to store either 48 x 205 litre drums or 12 x 1000 litre IBCs. This unit is manufactured to comply with pollution control regulations, ensuring safety and environmental protection by containing accidental spills with a leak proof sump base.

Key Features

• Stores 48 x 205 litre drums or 12 x 1000 litre IBCs
• 5 fixed steel support bars on both levels for added stability
• Welded design for enhanced strength with high and low-level vents
• Leak proof sump to a depth of 220mm to contain spills
• Constructed from 2mm profiled mild steel sheet with robust RHS (Rectangular Hollow Sections) and pressed ribs
• Plinth-based design eliminates ground contact, allowing for improved air circulation
• Painted with a minimum thickness of 100 microns for corrosion protection
• Equipped with lockable doors for enhanced security
• Complies with pollution prevention guidelines
• Sump capacity of 3000 litres

Optional Extras

Enhance the functionality of your storage unit with the following optional extras:

• Removable galvanised grid flooring and shelving
• Fire rated insulation
• Heating options
• Temperature control systems
• Lighting solutions
• Lockable sliding or roller shutter doors
• Pushback loading system for easier access

Dimensions & Specifications

Technical Specifications

• Material: 2mm profiled mild steel
• Support Structure: 100mm x 50mm x 3mm RHS
• Paint Thickness: Minimum 100 microns for corrosion resistance

FAQ

A: This storage unit is designed to accommodate either 48 x 205 litre drums or 12 x 1000 litre IBCs.

A: Yes, it is manufactured to comply with the Control of Pollution (Oil Storage) Regulations and the Environment Agency's Pollution Prevention Guidelines.

A: Warranty details are not specified; please check with the supplier for warranty information.
